Dual Bare Element Platinum Thermocouple with Ceramic Insulator

Calibration:

    Positive leg (+) Negative leg (-) Approx. Working Temperature
Type S Platinum-10% Rhodium Platinum 0 to 1550 °C
Type R Platinum-13% Rhodium Platinum 0 to 1600 °C
Type B Platinum-30% Rhodium Platinum-6% Rhodium 100+ to 1600 °C

Wire Gauge Size:

20
24
25
26
30

Alumina Insulator Outside Diameter:

1/8"
3/16"
1/4"

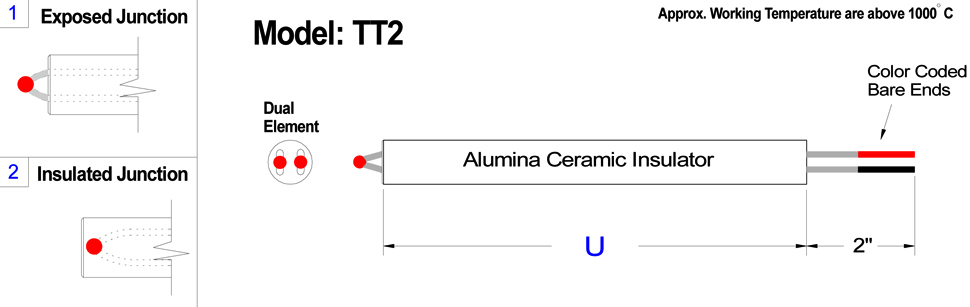

"U" Length on above diagram:

inches. + 0"
0.125"
0.188"
0.250"
0.315"
0.500"
0.625"
0.750"
0.875"

Junction

Exposed
Insulated

Product Code:



REQUEST A QUOTE
Call us at 1-888-667-3421 or email us at sales@platinum-thermocouples.com for a quote.
