General Purpose Mineral Insulated Platinum Thermocouple

Outside Diameter:

0.0625"
0.125" *
0.188"
0.25"
* Most common

Sheath Material:

316 Stainless
310 Stainless
Inconel 600 *
Hastalloy X
Other (Please specify at checkout under "Special Instructions")
* Most common

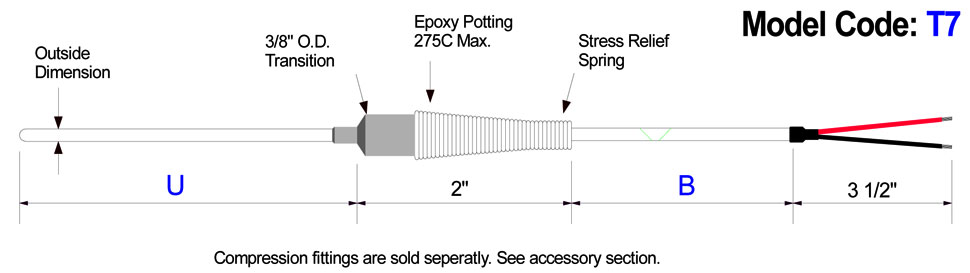

"U" Length on above diagram:

inches. + 0.125"
0.188"
0.250"
0.315"
0.375"
0.500"
0.625"
0.750"
0.875"
None

Calibration:

    Positive leg (+) Negative leg (-) Approx. Working Temperature
Type S Platinum-10% Rhodium Platinum 0 to 1550 °C
Type R Platinum-13% Rhodium Platinum 0 to 1600 °C
Type B Platinum-30% Rhodium Platinum-6% Rhodium 100+ to 1600 °C

Junction Styles:

  Grounded Ungrounded Exposed
grounded ungrounded exposed
common common isolated common isolated
Single    *
Duplex
* Ungrounded junction recommended

"B" Length on above diagram:

inches.

Cable Insulation:

Fiberglass - 20 AWG - Stranded *
Fiberglass with Metal Braid
Teflon - 20 AWG - Stranded
Teflon with Metal Braid
Fiberglass and Armor Cable (0.28" O.D.)
Other (Please specify at checkout under "Special Instructions")
* Most common

Termination:

3" Split Leads & 1/2" bare ends.
3" Split Leads & Spade Lugs.
Standard Male Plug (425 F)
Standard Female Jack (425 F )
Mini Male Plug ( 425 F )
Mini Female Jack (425 F )
Hi Temp. Male Plug (800 F)
Hi Temp. Female Jack (800 F)

Product Code:
