Straight Elements Mineral Insulated Platinum Thermocouple

Outside Diameter:

0.0625"
0.125"
0.188"
0.25"

Sheath Material:

316 Stainless
310 Stainless
Inconel 600
Hastalloy X
Other (Please specify at checkout under "Special Instructions")

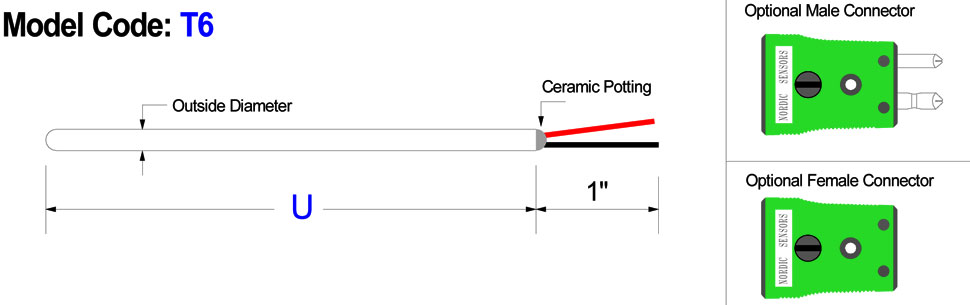

"U" Length on above diagram:

inches. + 0.125"
0.188"
0.250"
0.315"
0.375"
0.500"
0.625"
0.750"
0.875"
None

Calibration:

    Positive leg (+) Negative leg (-) Approx. Working Temperature
Type S Platinum-10% Rhodium Platinum 0 to 1550 °C
Type R Platinum-13% Rhodium Platinum 0 to 1600 °C
Type B Platinum-30% Rhodium Platinum-6% Rhodium 100+ to 1600 °C

Junction Styles:

  Grounded Ungrounded Exposed
grounded ungrounded exposed
common common isolated common isolated
Single    *
Duplex
* Ungrounded junction recommended

Termination:

1" Bare leads
Standard Male Plug (425 F)
Standard Female Jack (425 F )
Mini Male Plug ( 425 F )
Mini Female Jack (425 F )
Hi Temp. Male Plug (800 F)
Hi Temp. Female Jack (800 F)

Product Code:



REQUEST A QUOTE
Call us at 1-888-667-3421 or email us at sales@platinum-thermocouples.com for a quote.
