Hex Nipple Mineral Insulated Platinum Thermocouple

Calibration:

    Positive leg (+) Negative leg (-) Approx. Working Temperature
Type S Platinum-10% Rhodium Platinum 0 to 1550 °C
Type R Platinum-13% Rhodium Platinum 0 to 1600 °C
Type B Platinum-30% Rhodium Platinum-6% Rhodium 100+ to 1600 °C

Outside Diameter:

0.125"
0.188"
0.25"

Sheath Material:

316 Stainless
310 Stainless
Inconel 600 *
Hastalloy X
Other (Please specify at checkout under "Special Instructions")
* Most common

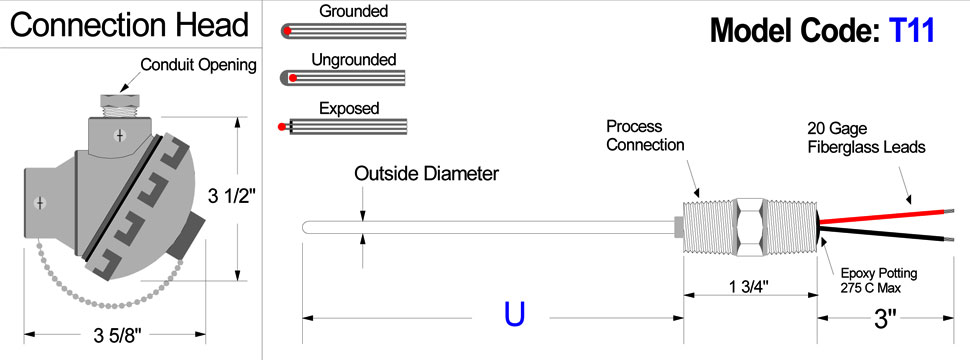

"U" Length on above diagram:

inches. + 0.125"
0.188"
0.250"
0.315"
0.375"
0.500"
0.625"
0.750"
0.875"
None

Head Connection:

1/4" NPT
1/2" NPT
3/4" NPT

Junction Styles:

  Grounded Ungrounded Exposed
grounded ungrounded exposed
common common isolated common isolated
Single    *
Duplex

Connection Head Model:

None , 3" Split Leads
Cast Aluminum
Cast Iron
316 Stainless Steel
Explosion Proof: Aluminum
Explosion Proof: 316 SS

Conduit Opening:

None
1/2" NPT
3/4" NPT

Connection Head Options

None
No Terminal Block
Spring Loaded
4-20mA Transmitter
Spring Loaded + 4-20mA Transmitter
Spring Loaded + No Terminal Block

Product Code:



REQUEST A QUOTE
Call us at 1-888-667-3421 or email us at sales@platinum-thermocouples.com for a quote.
