Bare Element Platinum Thermocouple
Calibration:
Positive leg (+)
Negative leg (-)
Approx. Working Temperature
Type S
Platinum-10% Rhodium
Platinum
0 to 1550 °C
Type R
Platinum-13% Rhodium
Platinum
0 to 1600 °C
Type B
Platinum-30% Rhodium
Platinum-6% Rhodium
100+ to 1600 °C
Wire Gauge Size:
20
24
25
26
30

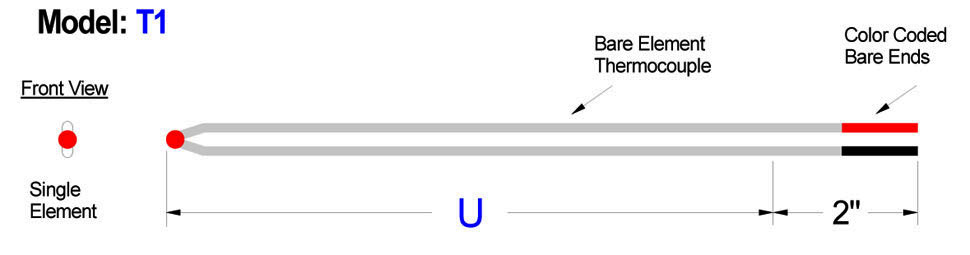

"U" Length on above diagram:
inches.
+
0"
0.125"
0.188"
0.250"
0.315"
0.500"
0.625"
0.750"
0.875"
Product Code:
REQUEST A QUOTE
